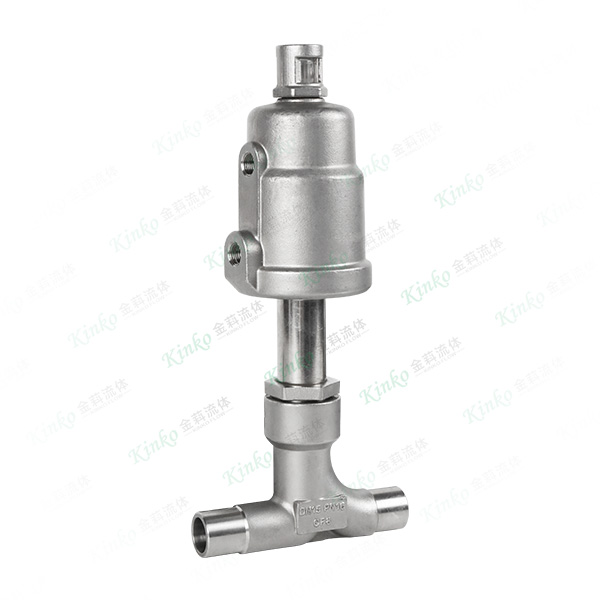

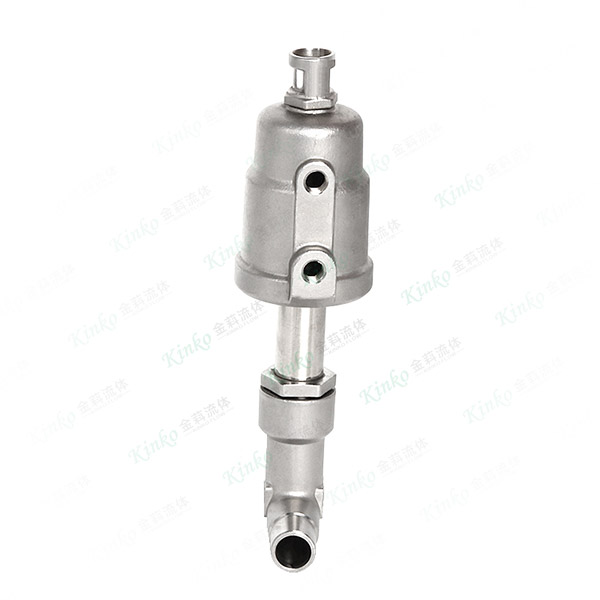

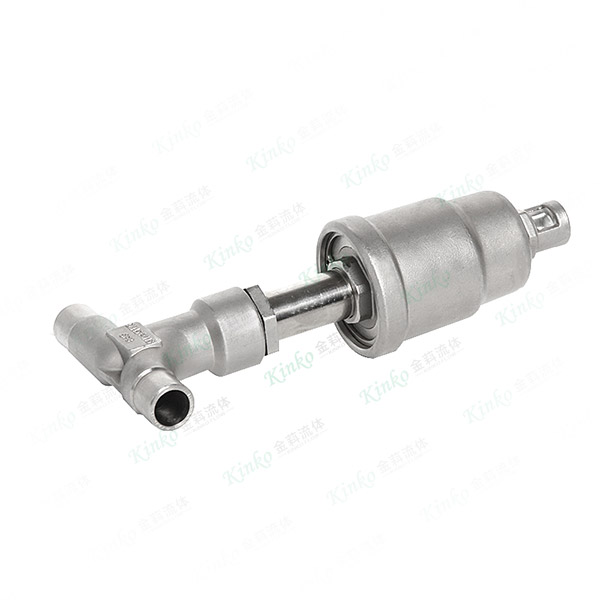

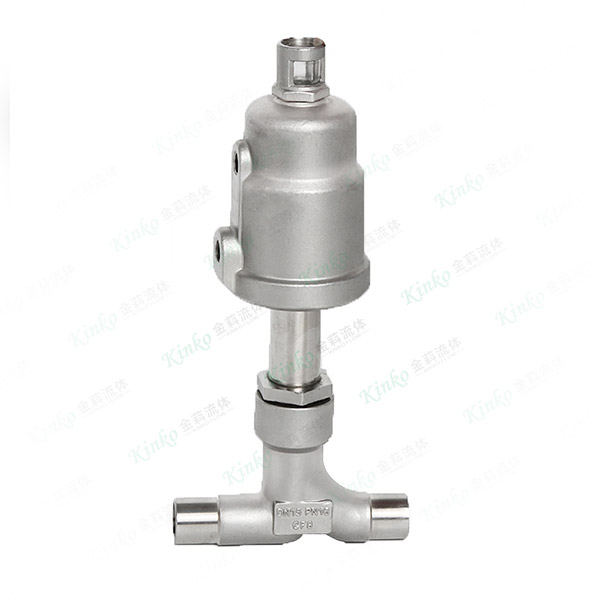

All stainless steel pneumatic straight-through angle seat valve

◆ Applicable media: water, liquid, neutral gas, water vapor.

◆ Temperature range: polytetrafluoroethylene: -20℃+ 180℃

◆ Ambient temperature: -20℃+ 60℃

◆ Viscosity: Max 600mm2/s

◆ Installation: any position

◆ Flow direction: up/down to the valve seat

◆ Control medium: air or neutral gas

◆ Control pressure: 0.4MPa-0.8MPa

◆ Technical data

Welding port: Φ19-Φ89

Valve body: CF8 / CF8M

Valve seat seal: PTFE

Valve stem seal: PTFE

Piston seal: NBR

Products and services that meet fluid control requirements

Each process, facility, and environmental constraint has its own special requirements. Therefore, Kinko offers a comprehensive range of products that include different performance levels, pressures, functions, and materials.

Product application scope

These devices are suitable for accurately controlling media such as gases, liquids, steam, etc., and maintaining process parameters such as pressure, flow rate, temperature, and liquid level at given values. Especially suitable for work environments where the allowable pressure difference is small and the allowable leakage is also small, and the pressure difference is not significant.
