Overview of Pneumatic Products

A pneumatic actuator is an actuating device that uses air pressure to open, close or regulate valves. It is also known as a pneumatic actuator mechanism or pneumatic device, but is generally commonly referred to as a pneumatic head. Pneumatic actuators are sometimes also equipped with certain auxiliary devices. Commonly used ones include valve positioners and handwheel mechanisms.

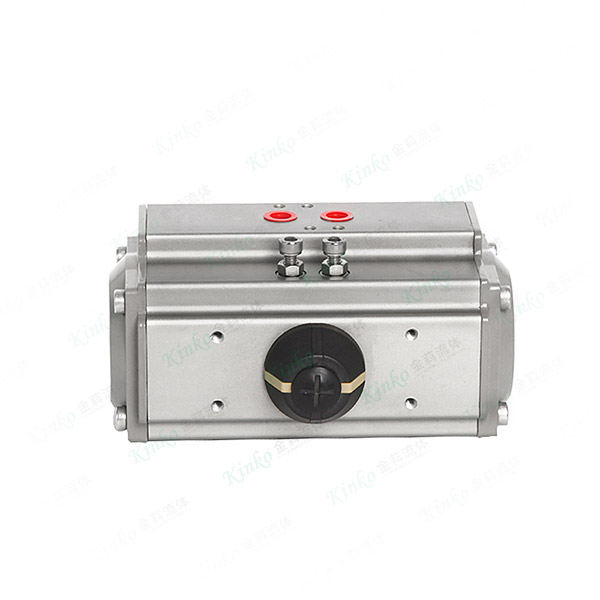

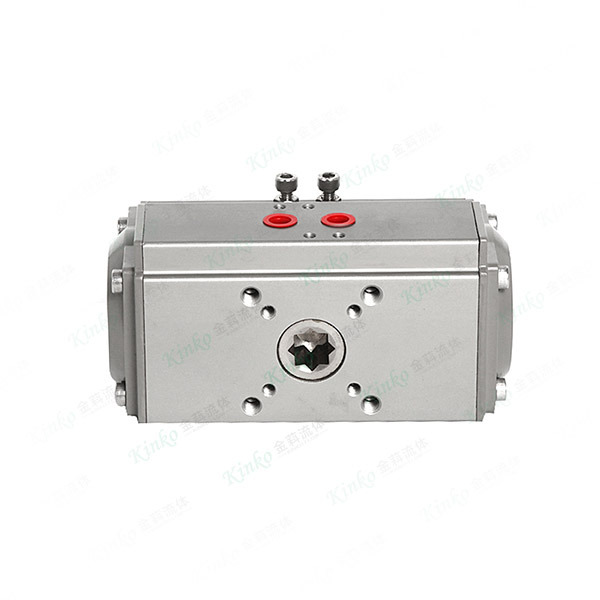

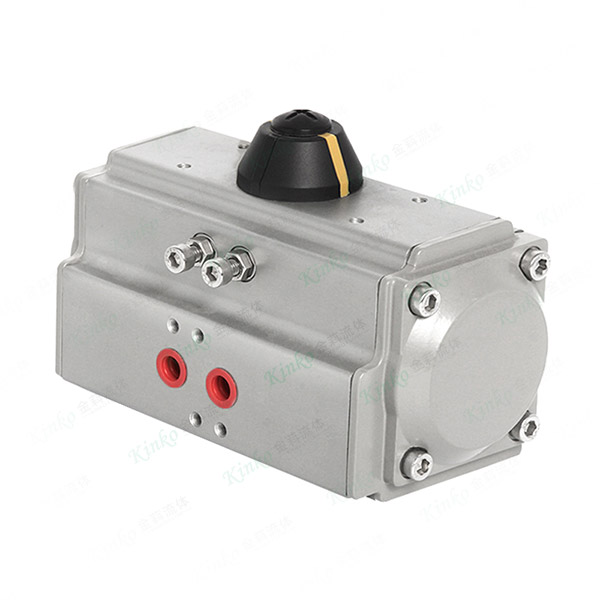

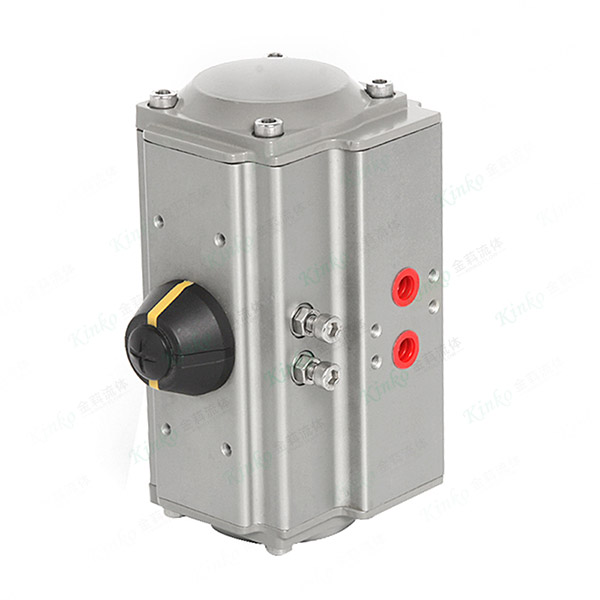

Specification and model: AT32-AT400

Shell material: Die-cast aluminum

Control mode Air source: 0.3-0.8Mpa

Working technical conditions

◆ 1. Working medium: Dry or lubricated air or non-corrosive gas medium with impurity particles less than 30μm.

◆ 2. Air source pressure: 3bar to 8bar.

◆ 3. Medium ambient temperature: Standard: -20℃ to +80℃; Low temperature: -40℃ to +80℃; High temperature: -20℃ to +160℃

◆ 4. Stroke adjustment: There is an adjustment range of ±5° at positions 0° and 90°

◆ 5. Application scenarios: Indoor or outdoor installation

Each process, facility, and environmental constraint has its own special requirements. Therefore, Kinko offers a comprehensive range of products that include different performance levels, pressures, functions, and materials.
