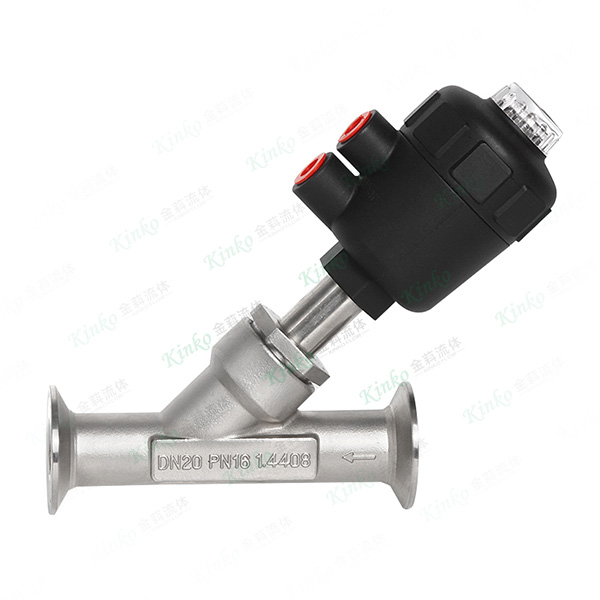

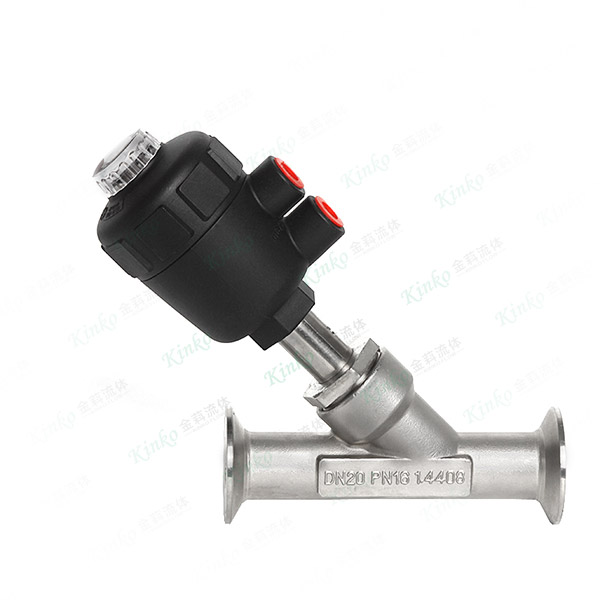

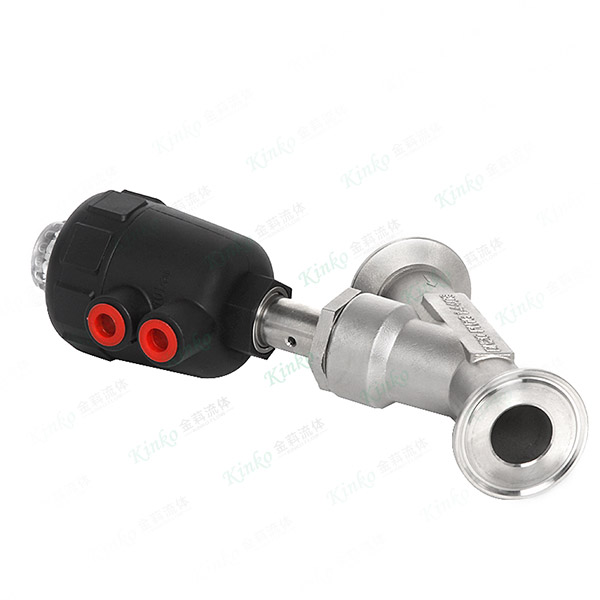

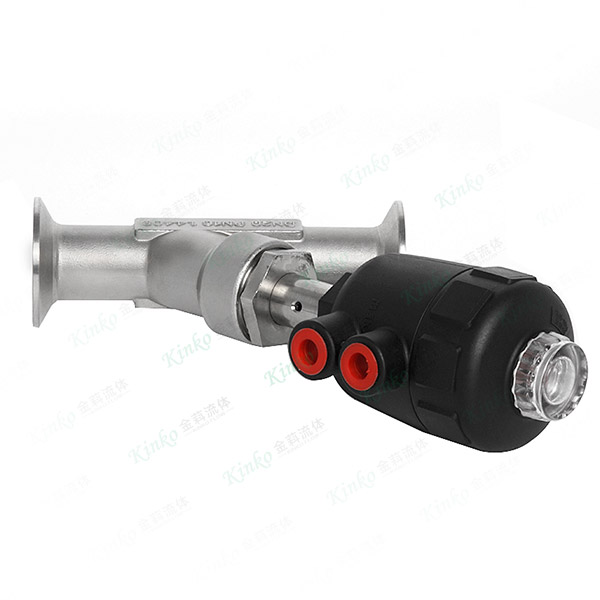

Quick-install pneumatic angle seat valve

Brief account

The external advanced guide angle seat valve has a self-adjusting sealing cover between the overflow port and the slider. The angle seat structure of the valve body can achieve a large flow rate, especially when compared with ordinary shut-off valves.

Technical parameter

◆ Pressure range: 0-16bar

◆ Medium temperature: -20℃～+180℃

◆ Ambient temperature: -20℃～+60℃

◆ Valve body material: stainless steel

◆ Sealing material: polytetrafluoroethylene PTFE

◆ Actuator shell: polyamide PA

◆ Medium: neutral gas, air, water

◆ Manufacturing standards: GB, DIN, ISO, SMS, 3A

Products and services that meet fluid control requirements

Each process, facility, and environmental constraint has its own special requirements. Therefore, Kinko offers a comprehensive range of products that include different performance levels, pressures, functions, and materials.

Detail

Select

◆ Control function: always open

◆ PPS actuator shell suitable for ambient temperature: +5℃～+130℃

◆ No reset spring double-acting actuator

◆ Quick-install connection

◆ Electronic position feedback

◆ Independently adjustable stroke limit, suitable for high and low flow

◆ Manual emergency switch

◆ Namur adapter suitable for pilot valve
